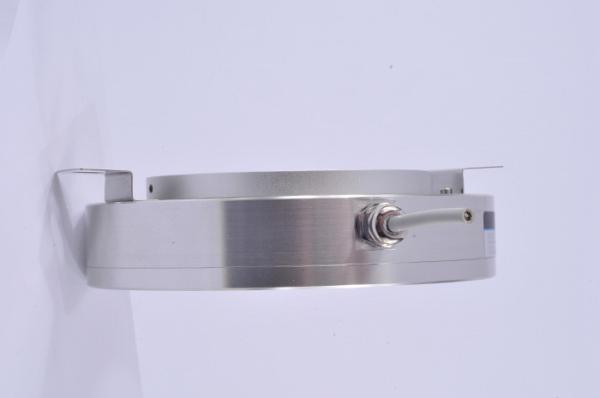

High resolution rotary encoder 80000ppr through hole 82mm TTL output K158 encoder
Characteristics
External diameter: 158mm
Thickness: 43mm
Installation dimension: R85mm (spring plate 158T170)
Hollow shaft type: through hole (clamping ring at prior)
Hollow shaft diameter: 70mm, 75mm, 78mm; 80mm; 82mm
Resolution: 1024; 2048; 20000; 40000; 80000
Output phase: Phase A+, B+, Z+, A-, B-, Z-
Supply voltage: DC5V; DC8-30V
Consumption current: 100mA MAX
Top REV: 3000RPM
Principle of encoder
With proper connections you can use the Push Pull interface to replace true open collector circuits by using an external diode connected in a way to limit the direction of the current for RS422 (TTL) circuits provide a constant 5 V signal level that is not dependent on the supply voltage. Two supply voltage ranges can be selected: From 4.75 to 5.5 VDC (can be used to replace open collector output drivers) or from 8 to 30 VDC. Using differential signals the output fully complies to the RS422 standard.
The differential outputs have the highest frequency response capability and the best noise immunity. To ensure this the receiver should also be a differential.
Replacement of Older Output Drivers
Application
Stepper motor
Servo motion controller
Gearbox
DC garage door motor
Brushless dc motor
Servo motor
Drawing machine
VFD
Inverter
Elevator
Printing machinery
Our Service
1. Quick response once received customer’s quotation query
2. Professional engineer team, to solve your problems at any time
3. Strictly inspection before shipment
4. Various encoder models to be selected
5. Short lead time
6. High quality standard
Parameter table
| Brand | HENGXIANG |
| Encoder type | Incremental encoder |
| External diameter | 158mm |
| Thickness | 43mm |
| Installation dimension | R85mm(spring plate 158T170) |
| Resolution | 1024;2048;20000;40000;80000 |
| Output phase | Phase A+,B+,Z+,A-,B-,Z- |
| Supply voltage | DC5V ; DC8-30V |
| Outlet type | Cable out from side |
| Output mode | Push-pull output |
| | line drive (26LS31) TTL |
| | line drive(DC8-30V) HTL |
| Consumption current | 100mA MAX |
| Top response frequency | 300KHZ |
| Insulation resistance | 10MΩ |
| Certification | CE |
| package | Carton box |
| Net weight | About 1800g (with package) |
Package
Each single encoder is packed into a single safe carton with protecting bubble.
Then all encoders will be put into a bigger carton to prepare shipment.
